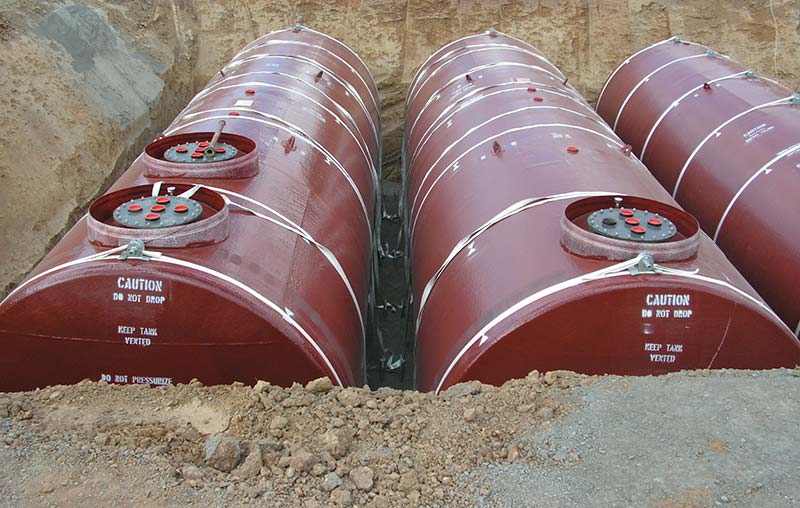

Tank Solutions are market leaders in the manufacture of Glasteel II ® Underground Fuel Tanks.

This quality fuel storage tank ranges in size from 2000L to 110,000L with many different compartment configurations available.

We offer 1200mm standard FRP risers with 600NB manways c/w 5 x 100NB BSP threaded sockets to suit the traditional retail pressure system. We also have a 1500mm FRP riser option for large capacity submersible turbines and some oil company specifications.

Glasteel II ® Underground Fuel Tanks are made from welded mild steel with an FRP outer layer as secondary containment and leak protection. The FRP outer containment also provides corrosion resistance and eliminates the need for cathodic protection.

The Glasteel II ® range is suitable for all products inclusive of blended fuels, ethanol and biodiesels along with many differing chemicals. A full range of internal tank liners can meet your most demanding applications.

Each tank is fitted in the factory with a vacuum gauge on the interstitial space to monitor your tanks integrity.

Downloads

• TD_TDS_008 Tech Data Sheet GS
• F 905 Backfill Guidelines GS
• TD_IM_012 Installation Checklist
• TD_IM_013 Rev 5 – Installation Manual GS
• F 910 Buoyancy Calculations Concrete Anchors
• F 1001 Specification GS
• F 1030 Warranty GS
• F 950 Leak Detection GS
• F 960 Out of Hole Tie Down System GS
• F 945 Interstitial Space Monitoring GS
